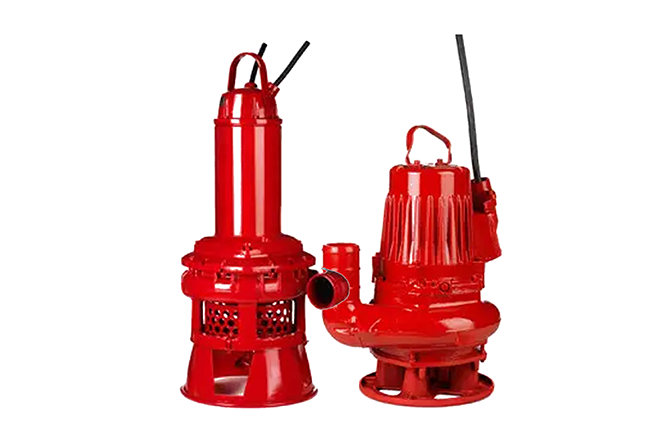

Slurry Pumps | Grindex Bravo 800
Slurry Pumps | Grindex Bravo 800
Product code 8152.020;
Submersible slurry pumps for pumping fluids with abrasive solids.
The Bravo 800 is extremely wear-resistant thanks to the use of Hard-ironTM and the low shaft speed. Equipped with an agitator to enhance the 'up-stirring' capabilities it is a superior quality pump for all kinds of slurry applications. Also available in Explosion Proof version
Bravo 800 Features
Pump type: Electrical submersible Slurry pump
Classification: IP 68
Max submersion: 20m/66 ft, Cable 20 m/66 ft SUBCAB [This pump requires an external
starter box]Discharge connection: Victaulic
Limitations: ph 5.5-14
Max liquid temp: 40°C/104°F (70°C/158°F on request)
|
Discharge connection: |
6" |
|
Rated power P2 : |
52 kW / 79.7 HP |
|
Max. power consumption P1 : |
56 kW |
|
Shaft speed : |
1775 rpm |
|
Rated current 1: |
80A at 460V |
|
Rated current 2: |
63A at 575V |
|
Solids passage with agitator |
36 mm / 1.4 inches |
|
Height : |
1652 mm / 65 inches |
|
Diameter : |
2875 mm / 34.5 inches |
|
Weight : |
613 kg / 1351 lbs |
